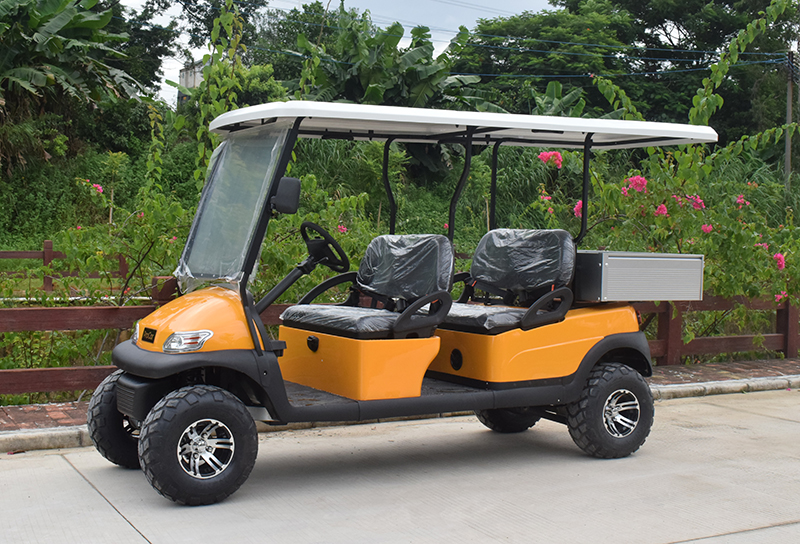

A lifted 4+2

Motor: made by Japan Nidec Corporation 48V 5KW AC motor Controller: USA Curtis AC type Battery: Chaowee brand 8V150AH GEL battery for maintenance free Charger: Off board 48V/ 25A Transaxle: Italy technology axle, aluminum reducer house Clim
Products Inquiry

Product Details

Motor: made by Japan Nidec Corporation
48V 5KW AC motor
Controller: USA Curtis AC type
Battery:  Chaowee brand 8V150AH GEL battery for maintenance free
Charger: Off  board 48V/ 25A
Transaxle:  Italy technology axle, aluminum reducer house
Climbing Capacity: 20%
Endurance mileage:  90km
Max forward speed: 40km/h
Passenger capacity: 6 passengers
Overall dimensions: 3500*1200*1700mm
Min. ground clearance: 150mm
Min turning radius : 2.9m
Max. brake movement : 2.4m
Max. loading weight: 600kgs
Net weigth: 560kgs ( includes batttery )
F / R track:  860/970mm
Wheelbase: 2490mm
Body: High quality “PP”engineering plasitc
Frame: Aluminum alloy frame
Batteries container: flame retardant PP, not tradition wood
Roof: ABC blow molding
Roof support: Imbedding steel tube
Large Seats: 1) plastic backrest + cushion
  2) rubber armrest
  3) plastic seat bottom:
Floor : rubber, not  tradition wooden to save cost
Acceleration assembly: Noncontact sensor,stable, seldom fault
Dashboard: cup holder ,battery capacity
  indicator,ignition key
Steering system: self-adjust rack-and pinion steering
Accelerator: electric accelerator
Front suspension:  Independent spring suspension
Rear suspension: Coll spring hydraulic shock absorber
